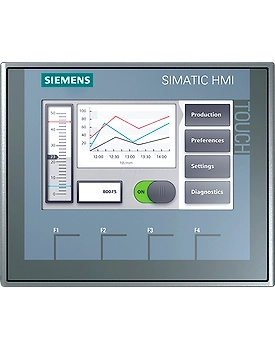

SIMATIC Basic Panel HMI Series KTP400 TFT Display 53.9 mm H x 95 mm W Display 4 Keys Ethernet Communication Ports 480 x 272 pixel Display Resolution Memory 10 MB 0 to 50 deg C Temperature Rating Plastic Material 116 mm H x 141 mm W x 33 mm D Dimensions

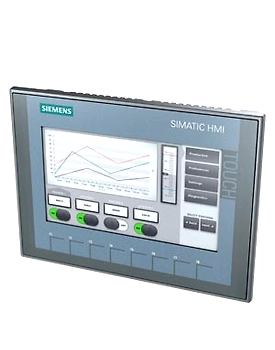

SIMATIC Basic Panel HMI Series KTP900 TFT Display 111.7 mm H x 198 mm W Display 8 Keys Ethernet Communication Ports 800 x 480 pixel Display Resolution Memory 10 MB 0 to 50 deg C Temperature Rating Plastic Material 182 mm H x 267 mm W x 55 mm D Dimensions

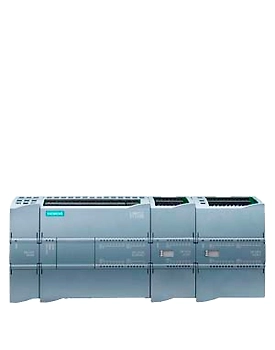

 Complex wiring of the safety function for feedback and possible functional dependencies Fault diagnosis only possible by means of onboard LEDs and not on a central HMI panel Reduced effort required for wiring All information e.g. signal states and diagnoses is already available in the system Efficient fault diagnosis centrally on an HMI panel Compact construction with integrated IOs and flexibility due to the board concept Security thanks to protected access to the CPU and program copy protection Incorporated functions and flexible connection of drives System diagnostics indicate error messages in plaintext in the TIA Portal on the HMI or web server Efficient engineering With SIMATIC STEP 7 Basic in the TIA Portal Fail-safe CPUs for the execution of standard and safety-related programs Flexible integration into all network structures PROFINET PROFIBUS AS-i IO-Link CANopen or even connection to remote control
